Blast Freezer Evaporators

Blast Freezer Evaporators are specialized evaporator units used in blast freezing applications. Blast Freezer Evaporators are available at Tekop Refrigeration!

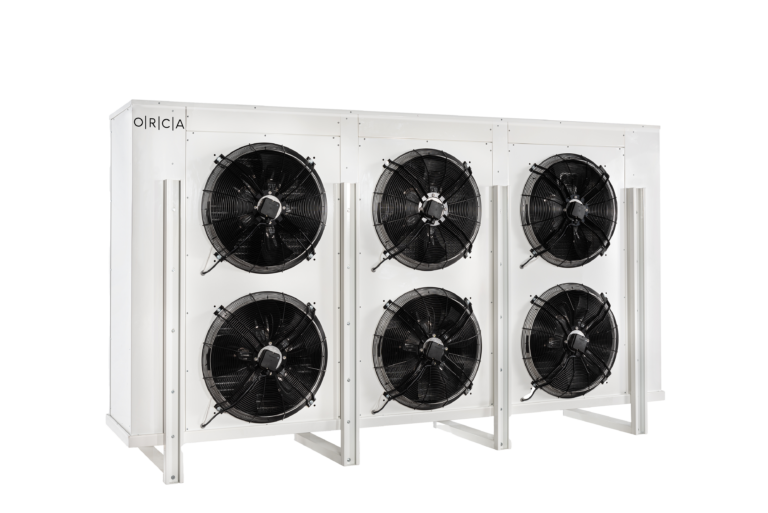

Blast Freezer Evaporators

Blast Freezer Evaporators are specialized evaporator units used in blast freezing applications. They are designed to rapidly freeze food products, ensuring quick and efficient freezing to preserve freshness, quality, and extend shelf life. Our blast Freezer Evaporators are available in various configurations, such as ceiling-mounted or floor-mounted units, to suit different space requirements.Blast Freezer Evaporators are typically equipped with powerful fans and large surface area coils to facilitate rapid heat transfer.

  • Environmentally Friendly
  • Certified Products
  • Energy Saving
  • Does not contain carcinogenic material
  • Can be used in health and food sector

Visit ORCA for more information about
Split Refrigeration Units.

General Specifications

They contain a wide capacity range from 6,3 kW to 57,3 kW. (These capacity ranges are given for R404A refrigerant type.)

  • High Efficient Aluminium Fins
  • 12 mm fin spacing
  • The copper tubes in 5/8’’ in diameters
  • High pressured test in 35 bar
  • High operating pressure till to 20 bar
  • Sending by positive pressure pressing with nitrogen
They might be covered optionally with epoxy cover aluminium fin.

Technical Specifications

Characteristics Of Casing:

Optionally, manufactured with stainless casing

  • Hot-dip galvanized sheet
  • Anti-rust and permanent electrostatic powder paint (RAL 7047)
  • Hinged drain tray,
  • Easily removed side covers by loosening the connection screw
  • Ceiling mounting brackets

Characteristics Of Heaters:

E2 type heating resistor is used for lower than 0°C room temperature. The resistors are mounted on the coil and on the drain tray.
In blast freezers, E3 type heating resistors are used as standard. Also heating resistors are mounted on the fan cage together with the cooling coil and the drain tray.

  • E2: Coil + drain tray electrical defrost
  • E3: Coil + drain tray+ fan electrical defrost

Characteristics Of Fans:

In blast freezers; 50 Pa in Ø500 fans, 100 Pa in Ø630 fans, external pressure loss has to be considered.

  • Energy-efficient and silent running fans
  • The fan motors are equipped with insulation class F, protection class IP54

Click here for more information

Fan Diameter (mm)

Fan Speed (fs/min) Phase / Voltage (V) / Frequency (Hz) Recommended Max. Operating Temperature (°C)
50013903 / 400 / 50-40 / +60
63013103 / 400 / 50-40 / +65
